| 型號 | 尺寸 | 規格 | 材質 | 墊座 | O-環 | 接口 |
| VP-360 | 2-1/2"~4" | ANSI, JIS, BS | PVC | PTFE | EPDM, FPM | Socket, Threaded |
| VP-361 | 2-1/2"~4" | ANSI, JIS, BS | CPVC | PTFE | EPDM, FPM | Socket, Threaded |
| VP-365 | 2-1/2"~4" | DIN | ABS | PTFE | EPDM, FPM | Socket, Threaded |
| VP-370 | 2-1/2"~4" | ANSI, JIS, BS | PVC | EPDM | EPDM, FPM | Socket, Threaded |
| VP-371 | 2-1/2"~4" | ANSI, JIS, BS | CPVC | EPDM | EPDM, FPM | Socket, Threaded |
| VP-375 | 2-1/2"~4" | DIN | ABS | EPDM | EPDM, FPM | Socket, Threaded |

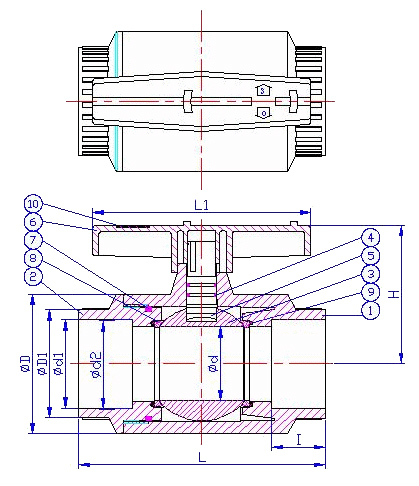

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,ABS | 1 |
| 2 | 外特普(BODY CAP) | UPVC,CPVC,ABS | 1 |
| 3 | 球(BALL) | UPVC,CPVC,ABS | 1 |
| 4 | O環(STEM O-RING) | EPDM,FPM | 2 |
| 5 | 中心柱(STEM) | UPVC,CPVC,ABS | 1 |
| 6 | 把手(HANDLE) | ABS | 1 |
| 7 | O環(UNION O-RING) | EPDM,FPM | 1 |
| 8 | 墊座(SEAT SEAL) | EPDM,PTFE | 2 |
| 9 | O環(SEAT SEAL O-RING) | EPDM,FPM | 2 |
| 10 | 把手蓋(CAP) | ABS | 1 |
| SIZE NOM | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | |
| JIS | ?d1 | 76.6 | 89.6 | 114.7 |
| ?d2 | 75.87 | 88.83 | 113.98 | |
| I | 44.45 | 47.63 | 57.15 | |
| ANSI | ?d1 | 73.38 | 89.31 | 114.76 |
| ?d2 | 72.85 | 88.7 | 114.07 | |
| I | 44.45 | 47.63 | 57.15 | |
| DIN | ?d1 | 75.3 | 90.3 | 110.4 |
| ?d2 | 75.1 | 90.1 | 110.1 | |
| I | 44 | 51 | 61 | |
| BS | ?d1 | 75.5 | 89.1 | 114.5 |
| ?d2 | 75 | 88.8 | 114.1 | |
| I | 44.45 | 47.63 | 57.15 | |
| ?D | 115 | 134 | 190 | |
| ?D1 | 89.5 | 106.8 | 143.5 | |
| ?d | 61 | 69 | 99 | |
| L | 200 | 227.5 | 300 | |
| L1 | 180 | 224 | 277 | |
| H | 116 | 128.5 | 176 | |
