| 型號 | 尺寸 | 規格 | 材質 | 墊片 | 接口 |
| VP-220 T type | 2"~8" | ANSI, JIS, DIN | PVC | EPDM, PTFE, FPMR | Flanged |
| VP-220 Y type | 1/2"~2" | ANSI, JIS, DIN | PVC | EPDM, FPM | Union, Socket, Flanged |
| VP-221 T type | 2"~8" | ANSI, JIS, DIN | CPVC | EPDM, PTFE, FPM | Flanged |
| VP-221 Y type | 1/2"~2" | ANSI, JIS, DIN | CPVC | EPDM, FPM | Union, Socket, Flanged |

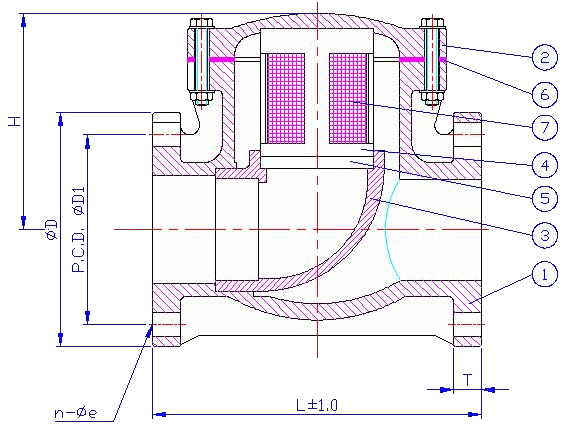

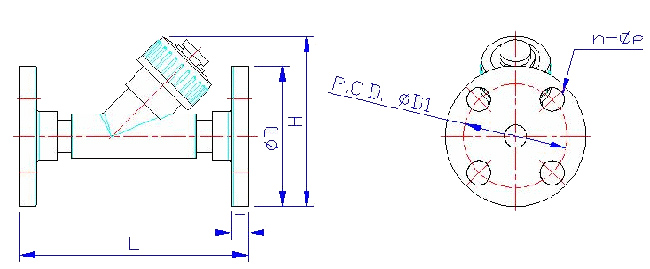

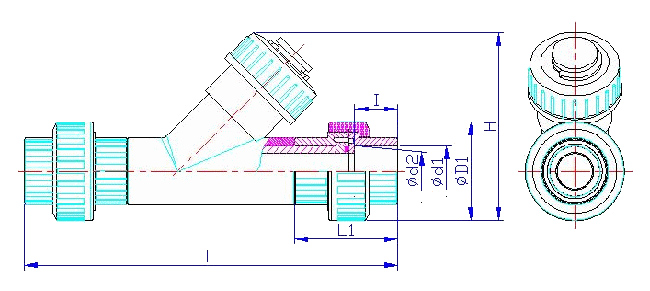

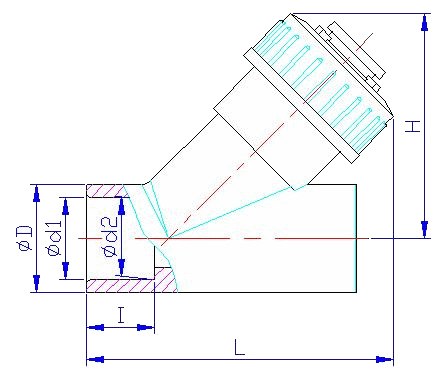

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC | 1 |
| 2 | 上蓋(BONNET) | UPVC,CPVC | 1 |
| 3 | 90°彎頭(90°ELL) | UPVC,CPVC | 1 |
| 4 | 濾網內本體(INNER BODY) | UPVC,CPVC | 1 |
| 5 | 濾網外本體(OUTER BODY) | UPVC,CPVC | 1 |
| 6 | 本體墊圈(GASKET) | EPDM,FPM | 1 |
| 7 | 網子(FILTER) | SUS304 or 316L | 1 |
| SIZE Nom | 2" (50mm) | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | 6" (150mm) | 8" (200mm) | |
| JIS | ?d1 | 155 | 175 | 185 | 210 | 285 | 330 |
| ?d2 | 120 | 140 | 150 | 175 | 240 | 290 | |
| n-?e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 12-23 | |
| ANSI | ?d1 | 152 | 178 | 191 | 229 | 285 | 343 |
| ?d2 | 121 | 140 | 152 | 191 | 241 | 298 | |
| n-?e | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | |
| DIN | ?d1 | 165 | 185 | 200 | 220 | 285 | 343 |
| ?d2 | 125 | 145 | 160 | 180 | 240 | 295 | |
| n-?e | 4-18 | 4-18 | 8-18 | 8-18 | 8-22 | 8-22 | |
| L | 200 | 240 | 260 | 300 | 400 | 500 | |
| H | 165 | 168.5 | 169 | 217 | 284.7 | 338 | |
| T | 20 | 22 | 22 | 24 | 26 | 30 | |
| SIZE Nom | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | |
| JIS | ?D | 95 | 100 | 125 | 135 | 140 | 155 |
| ?D1 | 70 | 75 | 90 | 100 | 105 | 120 | |
| L | 160 | 175 | 202 | 245 | 247 | 292 | |
| H | 122 | 132 | 166 | 199 | 200 | 225 | |
| T | 14 | 15 | 15 | 16 | 16 | 20 | |
| n-?e | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | |
| ANSI | ?D | 89 | 98 | 108 | 117 | 127 | 152 |
| ?D1 | 61 | 70 | 79 | 56 | 99 | 121 | |
| L | 154 | 170 | 200 | 245 | 250 | 290 | |
| H | 119 | 131 | 157 | 190 | 194 | 224 | |
| T | 11.1 | 12.7 | 14.3 | 16 | 17.5 | 19.1 | |
| n-?e | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | |
| SIZE Nom | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | |
| JIS | ?d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 |
| ?d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | |
| I | 22.2 | 25.4 | 28.6 | 31.8 | 34.9 | 38.1 | |
| ANSI | ?d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 |
| ?d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | |
| DIN | ?d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 |
| ?d2 | 20.1 | 25.1 | 32.1 | 40.1 | 50.1 | 63.1 | |
| I | 16 | 19 | 22 | 26 | 31 | 38 | |
| ?D1 | 46 | 55 | 66 | 82 | 98 | 120 | |
| L | 192 | 221 | 248 | 325 | 333 | 372 | |
| L1 | 54 | 60 | 69 | 85 | 89 | 95 | |
| H | 92 | 111 | 128 | 160 | 170 | 203 | |
| SIZE Nom | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | |
| ANSI | ?d1 | 21.54 | 26.87 | 33.27 | 42.42 | 48.56 | 60.63 |
| ?d2 | 21.23 | 26.57 | 33.65 | 42.04 | 48.11 | 60.17 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | |
| ?D | 30 | 36 | 44 | 61 | 61 | 77 | |
| L | 95 | 109 | 127 | 170 | 170 | 193 | |
| H | 66.5 | 77 | 90.7 | 122.7 | 122.7 | 143.8 | |
