PFA Part No. |

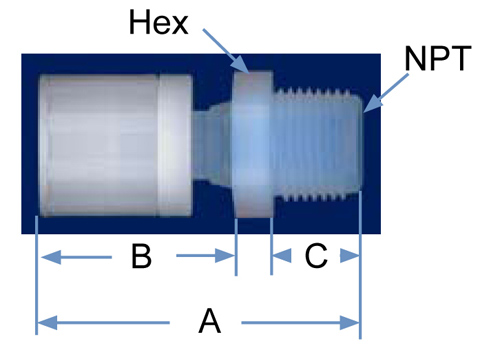

Tight Flare Size | NPT Size | Orifice | A | B | C | Hex |
| MC4T-4N-1 | 1/4 | 1/4 | .15 | 2.13 | 1.29 | .55 | 5/8 |
| MC4T-6N-1 | 1/4 | 3/8 | .15 | 2.13 | 1.29 | .55 | 13/16 |
| MC6T-6N-1 | 3/8 | 3/8 | .25 | 2.21 | 1.37 | .55 | 13/16 |
| MC8T-6N-1 | 1/2 | 3/8 | .38 | 2.26 | 1.42 | .55 | 13/16 |
| MC8T-8N-1 | 1/2 | 1/2 | .38 | 2.37 | 1.42 | .66 | 15/16 |
| MC12T-8N-1 | 3/4 | 1/2 | .55 | 2.56 | 1.60 | .66 | 1-3/16 |
| MC12T-12N-1 | 3/4 | 3/4 | .63 | 2.57 | 1.60 | .67 | 1-3/16 |
