PFA Part No. |
PVDF Part No. |
Tube O.D. |
Tube O.D.
|

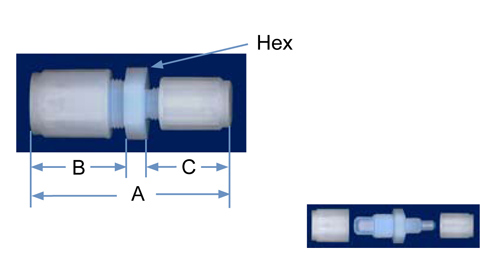

Orifice | A | B | C | Hex |
| SU64N-1 | SU64 | 3/8 | 1/4 | .15 |
2.75
|
1.28
|
1.18 |
11/16 |
| SU84N-1 | 1/2 | 1/4 | .15 | 2.85 | 1.38 | 1.18 | 15/16 | |
| SU86N-1 | SU86 | 1/2 | 3/8 | .25 | 2.95 | 1.38 | 1.28 | 15/16 |
| SU124N-1 | 3/4 | 1/4 | .15 | 2.97 | 1.50 | 1.18 | 1-3/16 | |
| SU126N-1 | 3/4 | 3/8 | .25 | 3.07 | 1.50 | 1.28 | 1-3/16 | |
| SU128N-1 | SU128 | 3/4 | 1/2 | .38 | 3.17 | 1.50 | 1.38 | 1-3/16 |
| SU168N-1 | 1 | 1/2 | .38 | 3.39 | 1.72 | 1.38 | 1-7/16 | |
| SU1612N-1 | SU1612 | 1 | 3/4 | .66 | 3.51 | 1.72 | 1.50 | 1-7/16 |
