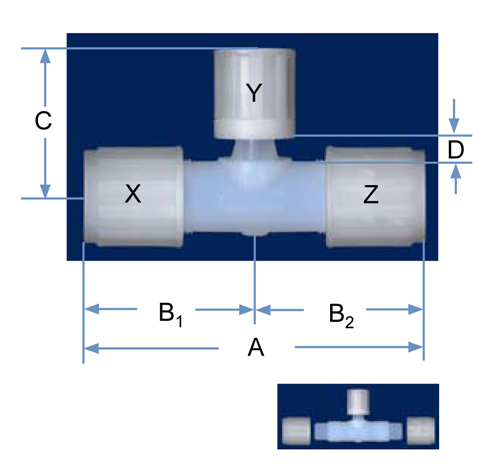

For “D” Dimension 4T = .66, 6T = .68, 8T = .73, 12T = .87, 16T = 1.27,T = Tight Flare,Flares 1/4” to 3/4” have close tolerancetechnology, i.e., location from centerline +/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	X	Y	Z	Orifice	A	B1	B2	C
UT4-4T-4N-1	1/4	1/4	1/4	.15	3.30	1.65	1.65	1.64
UT4-6T-4N-1	1/4	3/8	1/4	.15	3.30	1.65	1.65	1.73
UT6-4T-6N-1	3/8	1/4	3/8	.15	3.50	1.75	1.75	1.64
UT6-6T-6N-1	3/8	3/8	3/8	.25	3.50	1.75	1.75	1.73
UT6-8T-6N-1	3/8	1/2	3/8	.25	3.50	1.75	1.75	1.85
UT8-4T-8N-1	1/2	1/4	1/2	.15	3.72	1.86	1.86	1.64
UT8-6T-8N-1	1/2	3/8	1/2	.25	3.72	1.86	1.86	1.73
UT8-8T-8N-1	1/2	1/2	1/2	.38	3.72	1.86	1.86	1.85
UT8-12T-8N-1	1/2	3/4	1/2	.38	3.72	1.86	1.86	2.13
UT12-4T-12N-1	3/4	1/4	3/4	.15	4.36	2.18	2.18	1.64
UT12-6T-12N-1	3/4	3/8	3/4	.25	4.36	2.18	2.18	1.73
UT12-8T-8N-1	3/4	1/2	3/4	.38	4.04	2.18	1.86	1.85
UT12-8T-12N-1	3/4	1/2	3/4	.38	4.36	2.18	2.18	1.85
UT12-12T-8N-1	3/4	3/4	1/2	.38	4.04	2.18	1.86	2.13
UT12-12T-12N-1	3/4	3/4	3/4	.63	4.36	2.18	2.18	2.13
UT12-16T-12N-1	3/4	1	3/4	.63	4.36	2.18	2.18	2.77
UT16-8T-16N-1	1	1/2	1	.38	5.40	2.70	2.70	2.22
UT16-12T-16N-1	1	3/4	1	.63	5.40	2.70	2.70	2.13
UT16-16T-16N-1	1	1	1	.88	5.40	2.70	2.70	2.77
